Quality Assurance
ISO 17357 Certificated and Approved

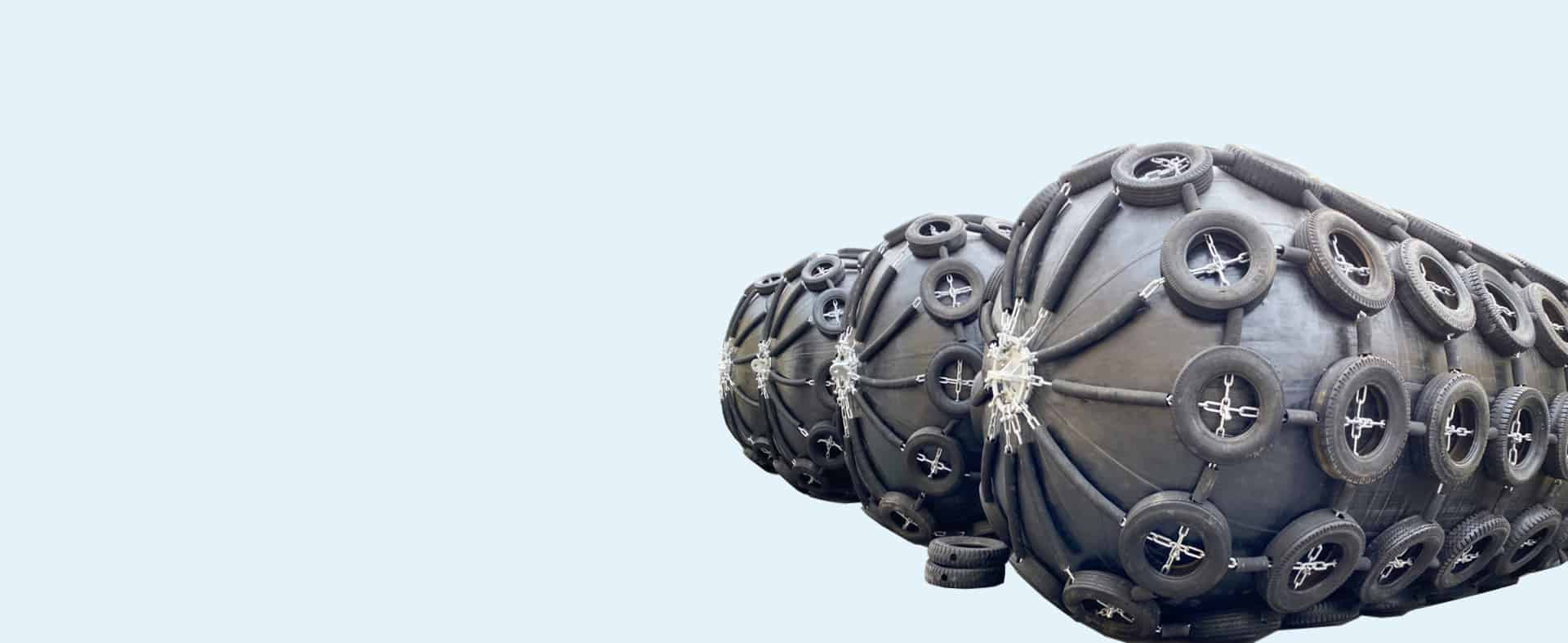

Yokohama Type Floating Pneumatic Rubber Fenders
The wrapped pneumatic rubber fenders are made by the integral winding technique. Its performance meets the ISO 17357. The price is much lower than molded Yokohama fenders.
Floating pneumatic rubber fenders are known as Yokohama fenders or Yokohama-type pneumatic fenders. Floating pneumatic rubber fenders are made of the synthetic-cord-reinforced rubber sheet with compressed air inside. The insider air can enable it to float on the water and work as a shock absorbed between two ships (ship-to-ship), or between ships and berthing structures when they come alongside each other on the water. All Doowin Marine Yokohama type floating pneumatic rubber fenders are manufactured and tested fully compliant with ISO 17357
Floating pneumatic rubber fenders can be easily handled and installed with a guy-rope or guy-chain because of their lightweight. It can resist the shearing force and maintain energy absorption level under inclined compression up to 15 degrees. Meanwhile, provide low and comparatively even hull pressure.
Consisted of several synthetic-cord layers and tough abrasion-resistant rubber, they have consistent performance even under rough conditions and cyclic load. The maintenance cost and damage risk are minimized too. The best material also ensures self-buoyancy and an extremely long service life.
Pneumatic fenders are available from 500 mm to 4,500 mm in diameters, and from 500 mm to 9,000 mm in length. All sizes of pneumatic rubber fenders are available as sling-type or with a heavy-duty chain & tire net. We also supply vertical hydropneumatic fenders for submarines. Foam-filled fenders are floating fenders too.
Get More Detailed Brochure Now
Pneumatic Fenders Classification
Our pneumatic rubber fender’s internal pressure, endurable pressure, and safety-valve setting pressure are fully compliant with ISO 17357.
Fender Pressure Rating
There are two initial pressure ratings for our Pneumatic Rubber Fenders.
■ Pneumatic 50 (P50, Initial internal pressure 50kPa)
■ Pneumatic 80 (P80, Initial internal pressure 80kPa)
Pneumatic Fender Type
There are two common types our Pneumatic Rubber Fenders.
■ Type I — Net Type Covered with a chain net, wire net, or fiber net for small size fenders
■ Type II — Sling Type This type of fender has a lifting device on each end, which shall be connected with a guy chain or guy-rope. Without a protection net, easy to handle with lightweight)
Pneumatic Fenders Specification
D x L (mm) | P50 GEA (kNm) | P50 Reaction Force (kN) | P50 Hull Pressure (kN/m2) | P80 GEA (kNm) | P80 Reaction Force ( kN) | P80 Reaction Force (kN/m2) |
|---|---|---|---|---|---|---|
500x1000 | 6 | 64 | 132 | 8 | 85 | 174 |
600x1000 | 8 | 74 | 126 | 11 | 98 | 166 |
1000x1500 | 32 | 182 | 122 | 45 | 239 | 160 |
1000x2000 | 45 | 257 | 132 | 63 | 338 | 174 |
1200x2000 | 63 | 297 | 126 | 88 | 390 | 166 |
1350x2500 | 102 | 427 | 130 | 142 | 561 | 170 |
153 | 579 | 132 | 214 | 761 | 174 | |
1700x3000 | 191 | 639 | 128 | 267 | 840 | 168 |
2000x3500 | 208 | 875 | 128 | 430 | 1150 | 168 |
2500x5000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
3000x6000 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 179 |
Sling Type Pneumatic Fender
Truck Tire Chain Net Fender
Aircraft Tire Chain Net Fender
Extra End Tires Fender
Pneumatic Fender Construction
Floating pneumatic rubber fenders consist of an out rubber, reinforcement synthetic-tire-cord layer, and inner rubber, vulcanized firmly.
The properties requirements of outer and inner rubber material of floating pneumatic rubber fenders comply with ISO 17357:2014.
For the Properties of Outer and Inner Rubber Material, please contact us to get it.
- ISO 17357-1:2014 Ships and marine technology — Floating pneumatic rubber fenders — Part 1: High pressure
- ISO 17357-2:2014 Ships and marine technology — Floating pneumatic rubber fenders — Part 2: Low pressure
Our Factory Stock
Manufactuered and Produced Comply with ISO17357
Pneumatic Rubber Fenders Advantages
Doowin-Marine pneumatic rubber fenders are manufactured and tested to comply with ISO 17357. Our real Yokohama-type pneumatic fenders are made by mold based on Korean production technology.
ISO 17357
All our pneumatic fenders are manufactured and tested comply with ISO 15375 latest edition.
Adaptable to The Tide
Float on the water in an unrestricted vertical plane corresponding to the tidal range and ship's vertical movement.
Against Shearing Force
Fenders are adequately reinforced using strong tire-cord to against combined shearing forces.
Low Cost Installation
Fender can be moored simply by means of a guy rope or chain. It can be removed easily to a suitable jetty or quay.
Soft Reaction Force
The reaction force does not increase sharply, even under excess load conditions.
15° Inclined Berthing
The pneumatic fender’s energy absorption does not decrease at inclined compression up to 15 degrees.
Lower Mooring Forces
This fender safely protect ships and mooring facilities even under rough weather conditions.
Ship Cost Minimization
The fenders are usually packed and shipped in containers or on pallets in vacuumed and folded down state.
GET TECHNICAL DOCUMENTS & BROCHURE NOW
Doowin Marine is professional MANUFACTURER of ship launching airbags, pneumatic rubber fenders, foam filled fenders, inflatable pipe plugs, and offshore foam buoys.
Our floating fenders include pneumatic rubber fenders and foam filled fenders. Our Yokohama type pneumatic rubber fenders are produced and inspected complying with ISO 17357.
Our engineers and consultants have been in fabrication and use these products for more than 30 years. Doowin Marine products passed rigorous ISO 9001:2008 Quality Management System, approved by the third party SGS, BV, CCS, ABS, LR, BV.
We are proud to provide the highest quality products, together with expert service and timely customer support. Let’s help you successfully complete your project – on budget and on time.
Professional Manufacturer of Floating Pneumatic Rubber Fenders, Foam Filled Fenders, Ship Launching Marine Rubber Airbags, Offshore Foam Buoys, Pipe Plugs.
