Floating Foam Filled Fenders

Foam fenders is one kind tough heavy-duty and unsinkable floating fenders system. They are often used for harbor, offshore and ship-to-ship application. Foam filled fenders have higher energy absorption with lower reaction force. Its performance is higher than the pneumatic rubber fenders and other marine fenders. Its self-floating characteristic ensure foam fenders are workable for ship-to-ship operation.

  • Netless foam fenders are without the chain and tire net.
  • Netted foam fenders are with the chain and tire net protection.

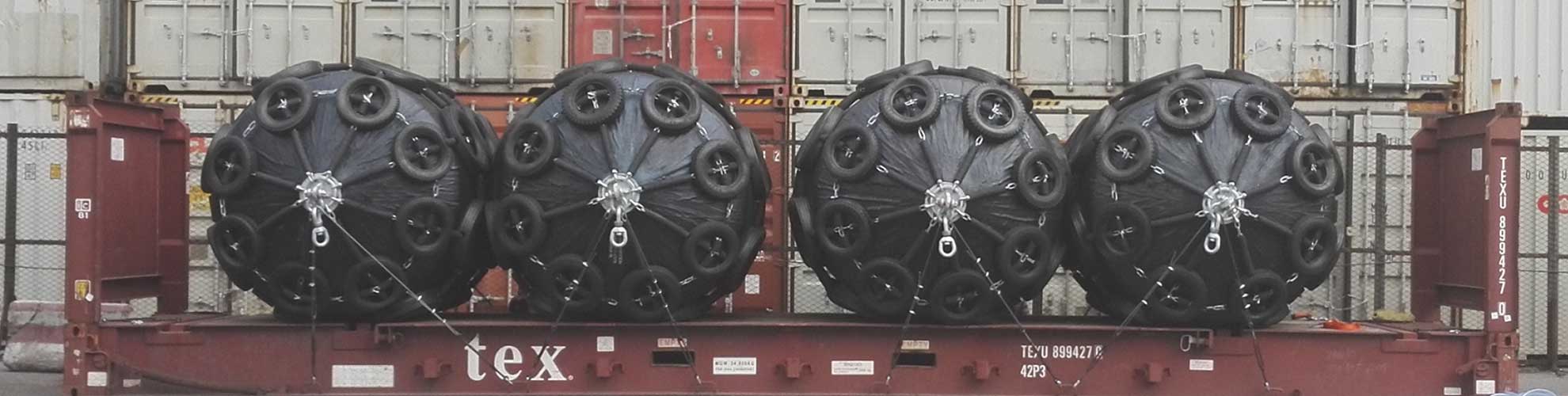

foam-filled-fenders
foam-filled-buoys-inner-steel-frame

Make Steel Structures

offshore-buoy-foam-core

Make Foam Core

buoys-and-fender-polyurethane-coating

Polyurethane Coating

foam-filled-fenders-end-fittings

Install End Fitting

Floating Foam Filled Fenders Features and Advantages

Marine Foam Fenders

High Energy

Core foam comes in many different types. Different density foam can absorb different impact energy and generate lower reaction forces.

Tough Outer Skin

Foam fenders have a rugged polyurethane elastomer out skin. To provide added strength, the thick skin is reinforced with nylon mesh.

Total Buoyancy

The natural buoyancy of foam fenders allows them to be installed in a floating position between ship and dock or another vessel.

Unsinkable

The closed cell foam structure makes punctures a thing of the past. Every cell is separate and so water cannot migrate into the foam.

Floating Foam Filled Fenders Construction

Foam filled fenders are filled with resilient, closed-cell foam. The skin is constructed of a urethane elastomer which is reinforced with nylon mesh.

foam filled fenders construction
  • HIGH ENERGY ABSORPTION FOAM CORE

    The foam core is high performance and quality 100% closed-cell foam, combined with our speical laminating process, ensures the integrity of every fender core. This specific foam can provide high energy absorption with relatively low reaction force. Even the skin was punctured, it also is unsinkable without absorbing water.

  • TOUGH OUTER SKIN

    Donut fenders have a rugged polyurethane elastomer outer skin, with nothing to snag hull protrusions or dock fittings. To provide added strength, the thick skin is reinforced with nylon mesh.

  • HIGH QUALITY STEEL STRUCTURE

    Comprising through central steel tube and external load distribution flanges at each end. Heavy duty internal chain connecting the end fitting through central tube is applied to transmit tensile load through the fender. All end fitting of foam filled fenders are hot-dip-galvanized.

Floating Foam Fenders Performance

Foam Fender Performance Curve

Floating-foam-filled-fenders-performance
floating-foam-fenders

Dia x Length

(mm)

Standard

Energy

(kNm)

Standard

Reaction

(kN)

High

Energy

(kNm)

High

Reaction

(kN)

700 x 1500

15

80

33

175

1000 x 1500

28

102

62

229

1000 x 2000

41

151

89

332

1200 x 2000

54

169

119

369

1350 x 2500

91

249

199

548

1500 x 3000

146

356

320

782

1700 x 3000

169

369

370

809

2000 x 3500

273

507

585

1088

2000 x 4000

324

601

694

1290

2000 x 4500

374

698

803

1493

2200 x 5000

504

852

1091

1846

2200 x 6000

626

1058

1354

2293

3000 x 4900

870

1061

1885

2303

3000 x 6000

1155

1409

2505

3056

3300 x 4500

890

1004

1929

2171

3300 x 6500

1437

1621

3117

3515

Foam Fenders Excellent in Practise

Floating Foam Filled Fenders

Welcome you contact us to get more information. We will provide more information about marine foam fenders, SSD foam fenders, vessel foam fenders, and donut foam fenders.
