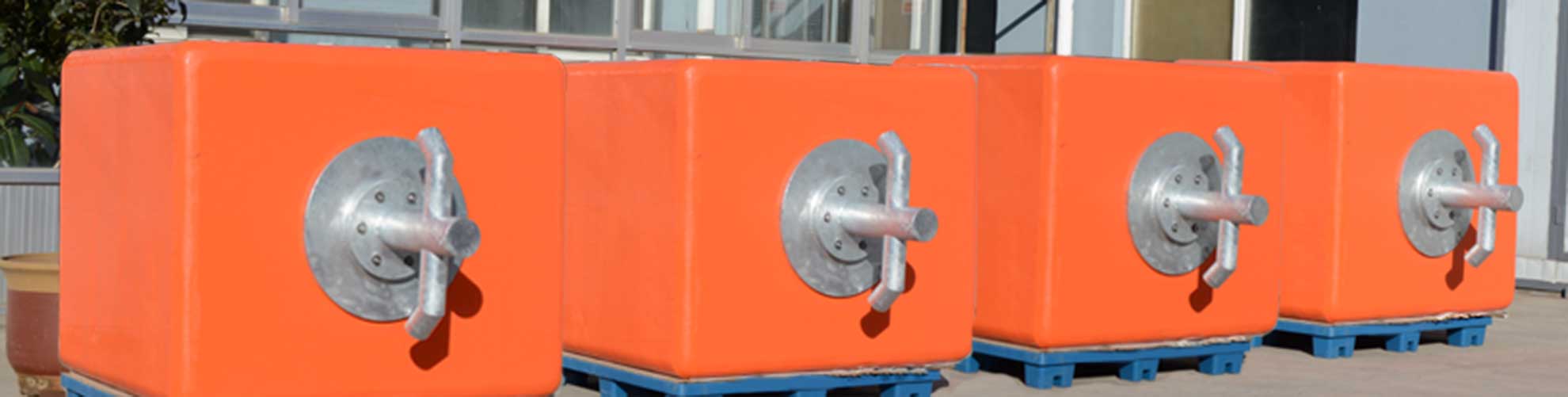

Suitcase Anchor Pendant Buoys

Suitcase anchor pendant buoys are manufactured from resilient closed-cell unsinkable foam core around the inner central steelwork covered in polyurethane elastomer coating.

The suitcase anchor pendant buoy has a rectangular shape with a lay-flat surface. This shape ensures the buoys can be safe storage and transported economically. The inner central steel frame has enough support  branches to ensure the foam core cannot be moved.

The resilient closed-cell polyethylene foam core guarantees self-fendering and is unsinkable even in case of damage. And self-colored polyurethane elastomer skin is resistant to abrasion and ultra violet rays degradation. For the extreme operating environment. The reinforced nylon filament ensures polyurethane elastomer protective coating has higher tear strength.

foam-filled-buoys-inner-steel-frame

Step 1: Make Steel Structures

offshore-buoy-foam-core

Step 2: Make Foam Core

buoys-and-fender-polyurethane-coating

Step 3: Polyurethane Coating

buoys-fitting-and-accessories

Step 4: Install End Fitting

Suitcase Anchor Pandent Buoys Features

DOOWIN Anchor Pendant Buoys
  • Self-fendering

    High impact absorption capacity

  • PU Protective Outer Skin

    Reinforced urethane elastomer skin

  • Inner PE/EVA Foam

    Unskinable closed cell rigid foam core

suitcase-pandent-buoys
  • Upper End Fitting

    Various end fitting options available

  • Internal Steel Core

    For better support and balance

  • Reinforcement Layer

    Reinforced nylon filament ensures polyurethane elastomer protective coating has higher tear strength

Rectangular Suitcase Anchor Pendant Buoys Specification

The table below shows a range of standard sizes only. Other sizes or specific buoyancy/dimensions required can be evaluated on application.
A variety of steelwork options, e.g. anchor cross, pad eye, swivels, etc. (see diagram) are available.
Standard colors are orange or yellow but other colors are available on request. Further options include reflective tape, and navigation lights.

suitcase-mooring-buoys

Type

Length

(mm)

Width

(mm)

Height

(mm)

Weight

(kg)

Net Buoyancy

(kg)

Net Buoyancy

(lbs)

SAPB1

1250

1100

1100

260

1000

2207

SAPB2

1800

1200

1500

500

2000

4413

SAPB3

1850

1300

1600

570

3000

6620

SAPB4

2000

1400

1800

750

4000

8826

SAPB5

2000

1500

2000

900

5000

11033

SAPB6

2000

1750

2150

1200

6000

13239

SAPB8

3000

1950

2200

1600

8000

17652

SAPB10

2400

1900

2700

1950

10000

22065

SAPB12

2400

2100

2900

2300

12000

26478

SAPB14

3000

2000

2900

2700

14000

30891

SAPB16

3350

2000

3000

3000

16000

35304

SAPB18

3350

2500

3450

3400

18000

39717

SAPB20

3250

2375

3450

3600

20000

44130

SAPB30

3250

2450

4850

4600

30000

66195
